Architecture

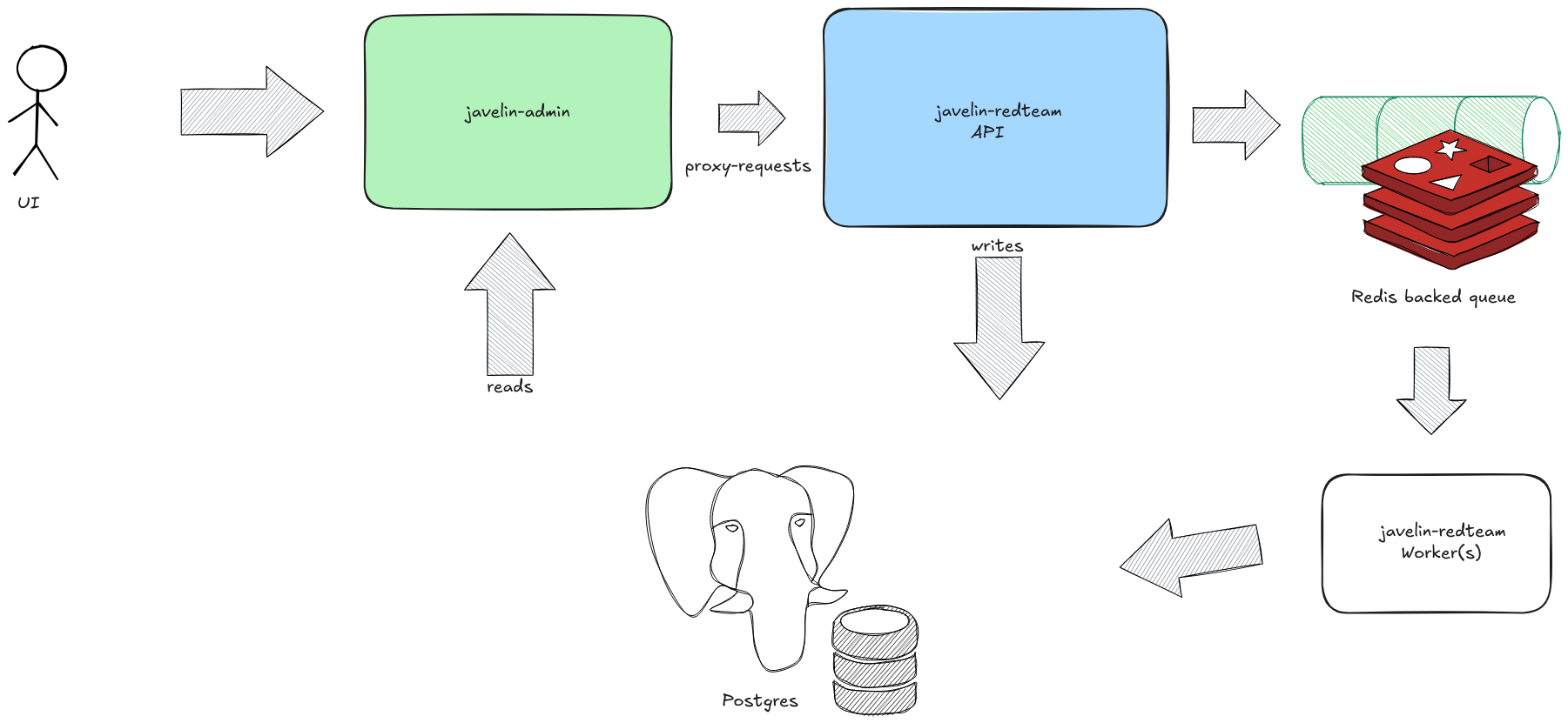

Javelin-Redteam-Architecture

Javelin RedTeam is built with a modular, scalable architecture designed for enterprise-grade AI security testing. The system leverages distributed agents, queue-based processing, and comprehensive data management to deliver reliable and efficient red teaming capabilities.

System Overview​

The Javelin RedTeam platform consists of several interconnected components working together to provide comprehensive AI security assessments:

┌─────────────────┐    ┌─────────────────┐    ┌─────────────────┐
│   Admin API     │───▶│  FastAPI Server │───▶│   Redis Queue   │
│   (REST/CLI)    │    │   (Async API)   │    │  (Task Queue)   │
└─────────────────┘    └─────────────────┘    └─────────────────┘
                                │                       │
                                ▼                       ▼
┌─────────────────┐    ┌─────────────────┐    ┌─────────────────┐
│   PostgreSQL    │◀───│  Agent Smith    │◀───│ Worker Processes│
│   (Database)    │    │ (Orchestrator)  │    │   (Consumers)   │
└─────────────────┘    └─────────────────┘    └─────────────────┘
                                │
                                ▼
        ┌─────────────────────────────────────────────────┐
        │              Specialized Agents                 │
        ├─────────────┬─────────────┬─────────────────────┤
        │   Planner   │ Generator   │    Executor         │
        │   Agent     │   Agent     │    Agent            │
        ├─────────────┼─────────────┼─────────────────────┤
        │ Evaluator   │  Reporter   │  Vector Store       │
        │   Agent     │   Agent     │   (Prompts DB)      │
        └─────────────┴─────────────┴─────────────────────┘

Core Components​

Javelin-Admin Service​

Javelin-Admin service exposes APIs for all operations pertaining to Javelin-Redteam. All reads are handled directly by Javelin-Admin, whereas all writes are proxied to Javelin-Redteam fastapi server.

FastAPI Server​

The API server provides the primary interface for red teaming operations:

  • Asynchronous Processing: Non-blocking API calls with immediate response
  • Request Validation: Input validation and sanitization
  • Health Monitoring: System status and performance metrics
# API Endpoints
POST /v1/redteam/scan                     # Trigger new scan
POST /v1/redteam/scan/{id}/rerun          # Re-trigger a scan
POST /v1/redteam/scan/{id}/cancel         # Cancel running scan
GET  /v1/redteam/taxonomy                 # Get vulnerability taxonomy

Redis Queue System​

Distributed task processing for scalable operations:

  • Asynchronous Execution: Decouple API requests from execution
  • Horizontal Scaling: Add workers to increase throughput
  • Fault Tolerance: Retry failed tasks and handle worker failures
Queue Flow:
API Request → Redis Queue → Worker Pool → Agent Execution → Database Storage

PostgreSQL Database​

Enterprise-grade data persistence:

  • Scan Management: Track scan status, progress, and results
  • Vector Storage: Store and retrieve attack prompt embeddings (pgvector)
  • Audit Trail: Complete history of security assessments
  • Report Generation: Structured data for comprehensive reporting

Agent Smith (Orchestrator)​

The central coordinator managing the entire red teaming workflow:

Responsibilities:

  • Coordinate specialized agents
  • Manage scan lifecycle
  • Handle error recovery
  • Monitor progress
  • Generate final reports

Specialized Agents​

Planner Agent​

Purpose: Strategic planning and attack orchestration

Capabilities:

  • Analyze target application characteristics
  • Generate comprehensive attack strategies

Output: Detailed attack plan with category priorities and execution strategy

Generator Agent​

Purpose: Create sophisticated attack prompts

Process:

  1. Base Prompt Retrieval: Fetch relevant prompts from vector database
  2. Template Processing: Fill in contextual variables and placeholders
  3. Engine Enhancement: Apply attack enhancement engines
  4. Quality Validation: Ensure prompt effectiveness and relevance

Engine Integration: Works with all available engines to transform base prompts into advanced attacks

Attack Executor​

Purpose: Execute attacks against target applications

Features:

  • Multi-Protocol Support: HTTP, gRPC, WebSocket, direct model calls
  • Concurrent Execution: Parallel attack execution with rate limiting
  • Response Collection: Capture and normalize target responses
  • Error Handling: Robust error handling and retry mechanisms

Attack Evaluator​

Purpose: Analyze responses for vulnerabilities

Evaluation Process:

  1. Response Analysis: Parse and structure target responses
  2. LLM Judge Evaluation: Use specialized models to assess vulnerabilities
  3. Severity Classification: Assign severity levels (Critical, High, Medium, Low)
  4. Evidence Collection: Gather supporting evidence for findings

Reporter​

Purpose: Generate comprehensive security reports

Report Components:

  • Executive Summary: High-level findings and risk assessment
  • Vulnerability Details: Specific issues with evidence and examples
  • Attack Vectors: Detailed attack scenarios and exploitation methods
  • Remediation Guidance: Actionable recommendations and best practices
  • Compliance Mapping: OWASP, NIST, and regulatory alignment

Attack Generation​

note

Please see the engine overview section for details regarding Attack Generation in Javelin-Redteam

Vector Database Integration​

Purpose​

Store and retrieve attack prompts efficiently using semantic similarity and other filters The overall workflow looks like below:

  1. Indexing: Convert attack prompts to vector embeddings
  2. Categorization: Organize by vulnerability types and categories
  3. Retrieval: Find relevant prompts based on target description
  4. Enhancement: Apply engines to transform base prompts

Scalability & Performance​

Horizontal Scaling​

  • Worker Processes: Scale by adding more worker instances
  • Database Sharding: Distribute data across multiple database instances
  • Load Balancing: Distribute API requests across multiple server instances
  • Queue Partitioning: Separate queues for different scan types

Performance Optimizations​

  • Connection Pooling: Efficient database connection management
  • Caching: Redis caching for frequently accessed data
  • Batch Processing: Group similar operations for efficiency
  • Async Operations: Non-blocking I/O for improved throughput

Resource Management​

framework_config.yaml config file allows us to specify and control many aspects of resource requirements by the Javelin-Redteam framework

# Execution settings
min_timeout: 3 # Minimum value that can be used as timeout parameter after which scan will be aborted and marked as failed
max_timeout: 300 # Maximum value that can be used as timeout parameter after which scan will be aborted and marked as failed
max_tests_per_category: 1000 # Maxium number of tests that can be generated per category in the scan
max_concurrency: 10 # Maximum allowed concurrency when executing the test cases against the target app
# Queue and scan limits
max_tests: 10000  # Maximum total test cases per scan
max_pending_scans: 10  # Maximum pending scans in queue

Security & Reliability​

Security Measures​

  • API Authentication: Bearer token authentication for API access
  • Input Validation: Comprehensive input sanitization and validation
  • Audit Logging: Complete audit trail of all operations
  • Secure Communication: TLS encryption for all network communications

Reliability Features​

  • Health Checks: Continuous monitoring of system components
  • Data Backup: Regular database backups and recovery procedures
  • Error Recovery: Automatic retry mechanisms with exponential backoff (COMING SOON)

Monitoring & Observability​

  • Metrics Collection: Performance and usage metrics
  • Log Aggregation: Centralized logging for debugging and analysis
  • Alert Systems: Automated alerts for system issues
  • Dashboard: Real-time system status and performance dashboards

This architecture enables Javelin RedTeam to provide enterprise-grade AI security testing while maintaining flexibility, scalability, and reliability across diverse deployment environments.
